Cycle time
Baskets (x3)
Height
Height – hood raised
Width
Width including handle
Depth
Usable wash height
Drain height
Drain diameter ∅
Wash tank
Boiler
Water usage
Wash element
Boiler element
Total load
Amps required
Detergent dosing
Rinse aid dosing
Water connection
Required water pressure
Required water flow rate
Drain pump
Internal softener**
Rinse aid pumps
SD900
120/180 sec
500 x 500 mm
1500 mm
1965 mm
655 mm
745 mm
745 mm
435 mm
470 mm
32 mm
22 L
5 L
2.4 L p/c
3.0 kW
6.0 kW
6.75 kW
32 Amps*
Yes
Yes
3/4 BSP
2-4 bar
10 L p/min
Optional
Optional
Optional
Optional
Optional
Cycle time
Baskets (x3)
Height
Height – hood raised
Width
Width including handle
Depth
Usable wash height
Drain height
Drain diameter ∅
Wash tank
Boiler
Water usage
Wash element
Boiler element
Total load
Amps required
Detergent dosing
Rinse aid dosing
Water connection
Required water pressure
Required water flow rate
Drain pump
Internal softener**

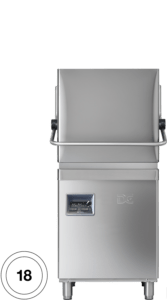

PD1000
120/180 sec
500 x 500 mm
1500 mm
1965 mm
655 mm
745 mm
745 mm
435 mm
470 mm
32 mm
22 L
5 L
2.4 L p/c
3.0 kW
6.0 kW
6.75 kW
32 Amps*
Yes
Yes
3/4 BSP
2-4 bar
10 L p/min
Optional
Optional
Optional
PD1300
60/120/180 sec
500 x 500 mm
1500 mm
1965 mm
655 mm
745 mm
745 mm
435 mm
470 mm
32 mm
28 L
5 L
2.4 L p/c
3.0 kW
6.0 kW
6.75 kW
32 Amps*
Yes
Yes
3/4 BSP
2-4 bar
10 L p/min
Optional
Optional
Optional
PD1350
60/120/180 sec
500 x 500 mm
1500 mm
1965 mm
655 mm
745 mm
745 mm
435 mm
470 mm
32 mm
28 L
9 L
2.4 L p/c
3.0 kW
10.0 kW
11.1 kW
3N 18 Amps
Yes
Yes
3/4 BSP
2-4 bar
10 L p/min
Optional
Optional
Optional
Cycle time
Baskets (x2)
Height
Width
Depth
Usable wash height
Drain diameter ∅
Wash tank
Boiler
Wash element
Boiler element
Total load
Amps required
Detergent dosing
Rinse aid dosing
Water connection
Required water pressure
Required water flow rate
Drain pump
Internal softener**
Break tank (WRAS)***
OD1400
60/120/180/480 sec
500 x 500 mm
1500 mm
655 mm
745 mm
405 mm
55 mm
30 L
5.5 L
3.0 kW
6.0 kW
7.1 kW
32 Amps
Yes
Yes
3/4 BSP
2-4 bar
10 L p/min
Standard
Optional
Standard
OD1400 10 kW
60/120/180/480 sec
500 x 500 mm
1500 mm
655 mm
745 mm
405 mm
55 mm
30 L
5.5 L
3.0 kW
10.0 kW
11.1 kW
Min: 18* Max: 24
Yes
Yes
3/4 BSP
2-4 bar
10 L p/min
Standard
Optional
Standard
OD1425
60/120/180/480 sec
570 x 630 mm
1560 mm
775 mm
852 mm
435 mm
55 mm
30 L
7 L
3.0 kW
6.0 kW
7.43 kW
32 Amps
Yes
Yes
3/4 BSP
2-4 bar
10 L p/min
Standard
Optional
Standard
OD1425 10 kW
60/120/180/480 sec
570 x 630 mm
1560 mm
775 mm
852 mm
435 mm
55 mm
30 L
7 L
3.0 kW
10.0 kW
11.43 kW
Min: 18* Max: 24
Yes
Yes
3/4 BSP
2-4 bar
10 L p/min
Standard
Optional
Standard
OD1450
60/120/180/480 sec
570 x 630 mm
1500 mm
1181 mm
787 mm
405 mm
55 mm
60 L
24 L
7.5 kW
20.0 kW
22.2 kW
Min: 34* Max: 45
Yes
Yes
3/4 BSP
2-4 bar
10 L p/min
Standard
Optional
Standard
Where water hardness exceeds 100ppm a water softener is required.
* Dedicated three-phase (3N) machines show the minimum amps per phase based on a boiler priority configuration. The maximum amps per phase is based on the boiler and wash tank elements configured (programmable) to work in tandem.
** Internal water softener is not suitable for hot water above 30˚C. Softening capacity between regenerations is 250 litres @ 300ppm. Where water hardness exceeds 300ppm and the daily wash cycles exceed 80 per day an alternative softener may be required – please contact your supplier for further information.
*** add 25mm to machine depth.
Two and three minute cycle option
Auto start operation
Rinse thermolock
Improved rinse arms
Intuitive, simple controls
EasyClean filters
Heavy duty wash pump
Engineer diagnostic mode
Extra usable wash height
Low volume wash tank
Heavy duty heater elements
Counter balanced hood
Heavy duty heater element
Chemical auto dosing
Integral softener
Insulated boiler
Double skinned hood
Four adjustable cycles
TFT Display
Chemical dosing adjusted from control panel
Break tank
Drain pump
Chemical pump
Switchable thermolock
Digital heat sensors
Uprated heating elements
Standard Passthrough Dishwashers
Premium Passthrough Dishwashers
Optima Passthrough
Dishwashers
= Optional
Reduced water usage
Audio status indicator
Reduced electrical costs
Wash tank and boiler temperature displays
Fast, powerful wash cycle
Temperature readouts
Wash and rinse temperatures displayed
Superior peristaltic auto dosing units
Intelliwash System
Superior washing performance
Reduced water consumption
Standby mode
Superior peristaltic dosing units
Standard Passthrough Dishwashers
Premium Passthrough Dishwashers
Optima Passthrough
Dishwashers
