Suitable for all catering

environments, our bottle washers allow you to reduce your use of plastic bottles

Our bottle washers are designed

to satisfy multiple washing needs during service

Supporting operators going plastic free by moving from single use plastic bottles to a zero waste solution

The Wash and Rinse Integrated System reduces rinse water

usage by 25%, while still providing a thorough, consistent clean

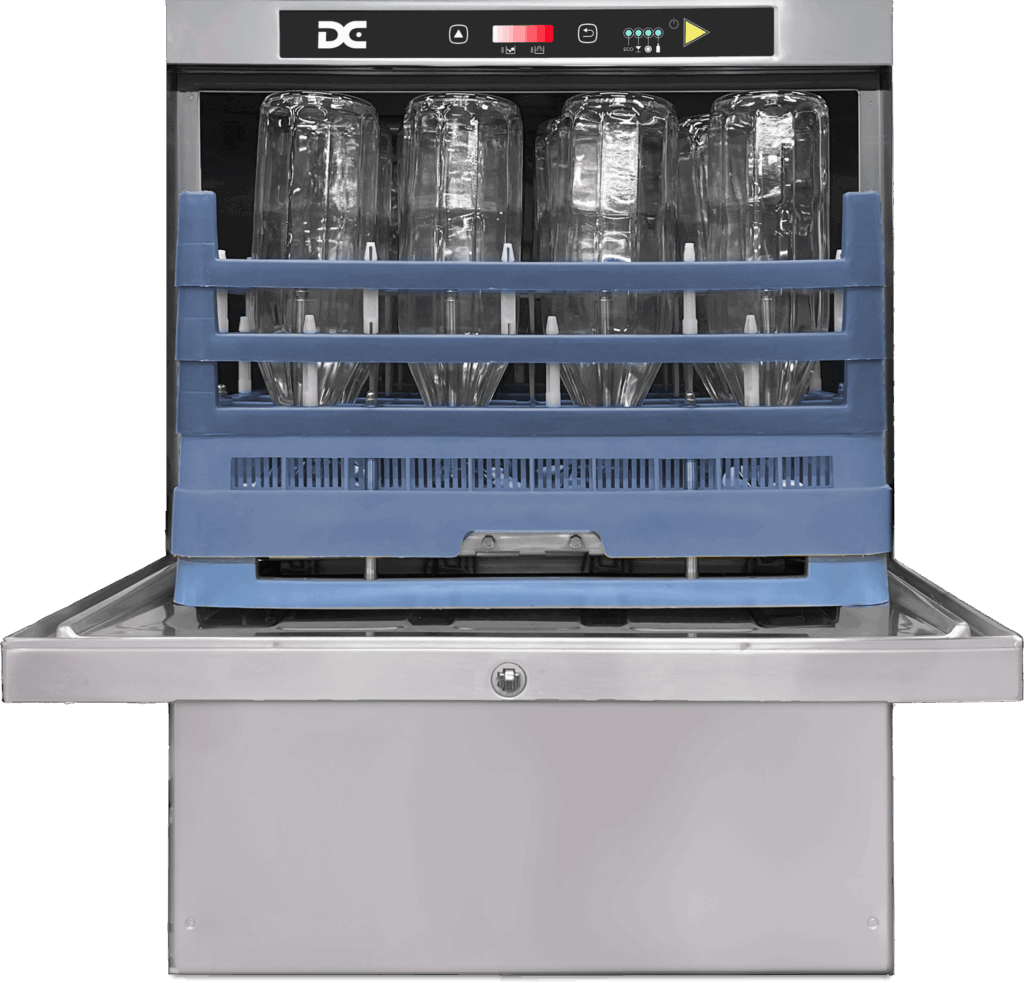

Our bottle washers have a specific

compartment for refillable bottles and jugs. A separate stainless steel rinse circuit will automatically activate when the rack is loaded

Features

STYLISH. BALANCED. PRECISE.

Controls

Quick parameter access and setting for certified engineers
Display with temperature indicators
Four programming options for washing cycles – Eco fast, Glasses, Dishes, Bottle/Jugs
Cycle and performance counter help plan maintenance
Colour coded status indicators

Construction

Single skin body in AISI 304
Moulded double skin insulated door
Rear panelling
Quick-coupling hook, enabling loading with a single move
Dedicated nozzles to spray directly into bottles and jugs
Uniquely designed racks allow for proper spacing and optimum water penetration
Built-in detergent and rinse-aid dosing pumps
Racks allow for proper spacing and optimum water

Supplied with two glass baskets

Technology

Hood activated cycle start and manual cycle start
Soft Start – cycle starts slowly and gradually increases speed to prevent damaging light items
Magnetic microswitch stops cycle in case of accidental door opening
Temperature measurement via electronic probes, providing accuracy and reliability

Hygiene

Adjustable Thermostop as a standard, ensuring correct operating temperatures are reached
Multiple filtration system – whole tank filter and pump suction filter
Self-cleaning cycle at unit switch-off
Double water blade design boosts contact time and produces brilliantly clean results
Dedicated racks provide thorough cleaning with rapid evaporation times and enhanced protection
Efficient solution to clean refillable bottles and jugs

Bottle Washers

SPECIFICATIONS

Model

BW50A D

Cycle time

90 90 120 260

Baskets (x3)

500 x 500 mm

Amps required

3N 13A or 1PH 32A

Specifications

Dimensions

Height

730 mm

Width

600 mm

Depth

600 mm

Usable wash height

300 mm

Drain ∅

65 mm

Volume

Wash tank

12 L

Boiler

5.5 L

Water usage

2.5 L p/c

Power

Wash element

2 kW

Boiler element

6 kW

Total load

6.6 kW

Chemicals

Detergent dosing

Yes

Rinse aid dosing

Yes

Water

Water connection

3⁄4 BSP

Required water pressure

2-4 bar

Required water flow rate

10 L p/min

Options

Drain pump

Standard

Internal softener*

Optional

Break tank (WRAS)

Standard

* Internal water softener is not suitable for hot water above 30˚C. Softening capacity between regenerations is 250 litres @ 300ppm. Where water hardness exceeds 300ppm and the daily wash cycles exceed 80 per day an alternative softener may be required – please contact your supplier for further information.

Ideally suited to

Hotels

Bars

Bakeries

Nurseries
