Our icemakers produce a

range of ice types for all catering and industrial applications

DC Products DCT140-40A Self Contained Pebble Icemaker

Our icemakers produce a range of ice perfect for every occasion

Discover your ice machine now

Ice cubes that maintain

high quality and perfect transparency

Provides optimal control

over dilution, melting during shaking, and stability

Qube ice cube

Features

COMPACT. CRYSTAL. HCFC and RoHS FREE.

Properties

  • High cooling crystal cube
  • AISI 304 SS Scotch Brite finish
  • Tropical class +43°C
  • Adjustable Stainless Steel feet
  • Removable and cleanable air filter
  • Air or water cooling system
  • Easy cleanable internal rounded surfaces
  • Disappearing insulated door
  • Electromechanical operation
  • ON-OFF rocker switch
  • Standard and special voltages
DC Products DC55-25A Icemaker

Technical information

  • Cooling system A – W
  • Kind of cube 23g
  • Refrigerant R290
  • Standard voltage 220-240 V ~ 50 Hz
  • Fuse 13 A
  • Finish AISI 304 stainless steel, scotch brite
  • Only for water cooling systems

Ideal conditions

  • Ambient temperature +10°C/+50°F to +43°C/110°F
  • Water temperature +3°C/+37°F to +32°C/+90°F
  • Voltage -10% to +10%
  • Water inlet pressure
  • 1bar (14 psi) to 6bar (84 psi)

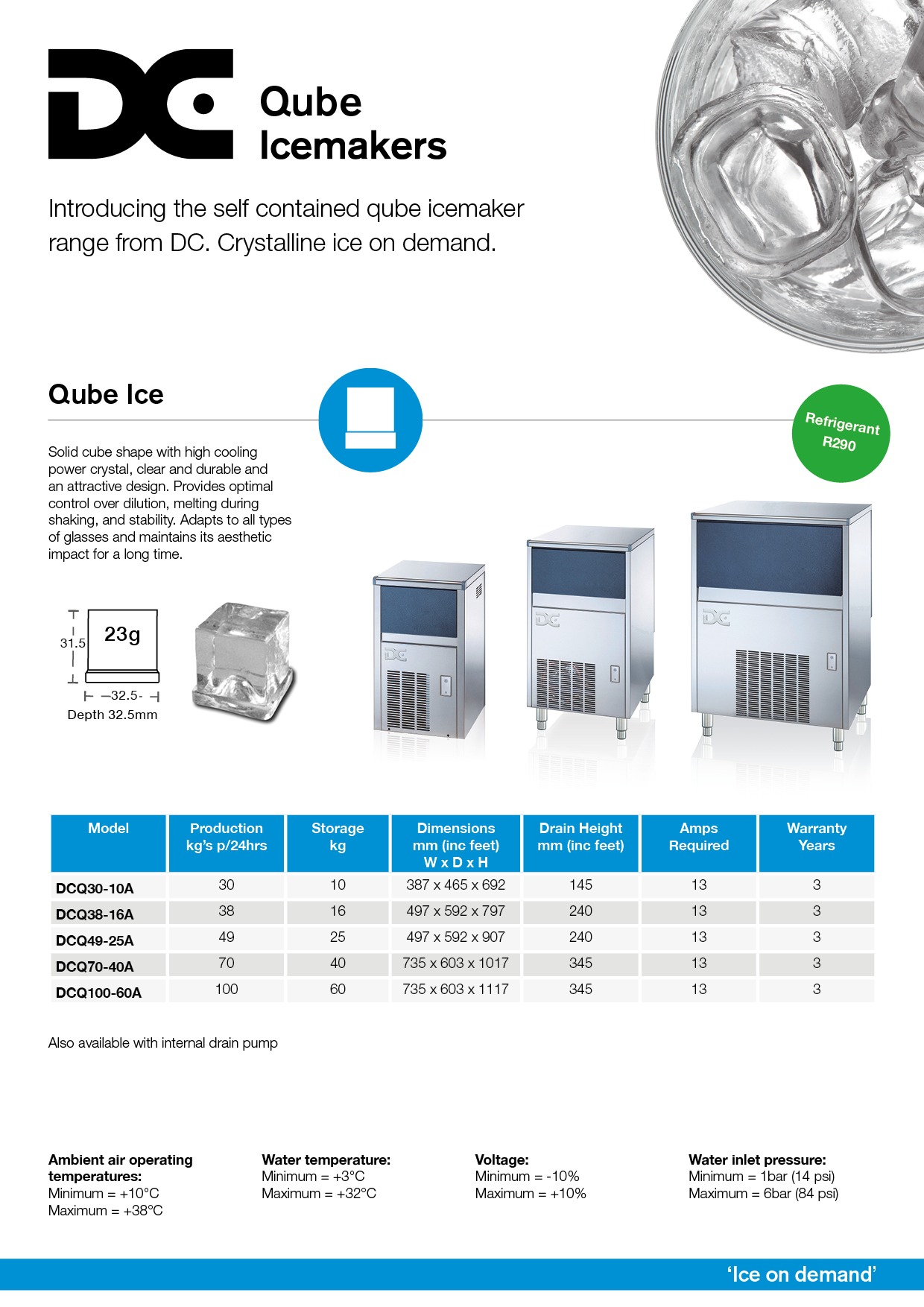

Self Contained Qube Icemakers

DC Products DC20A Classic Self Contained Icemaker

 Model

DCQ30-10A

 Production

30kg per 24hrs

 Storage kg

10

 Dimensions mm

 (inc feet) WxDxH

387 x 465 x 692

 Drain Height mm

 (inc feet)

145

 Amps Required

13

 Model

DCQ38-16A

 Production

39kg per 24hrs

 Storage kg

16

 Dimensions mm

 (inc feet) WxDxH

497 x 592 x 797

 Drain Height mm

 (inc feet)

240

 Amps Required

13

 Model

DCQ49-25A

 Production

49kg per 24hrs

 Storage kg

25

 Dimensions mm

 (inc feet) WxDxH

497 x 592 x 907

 Drain Height mm

 (inc feet)

240

 Amps Required

13

DC Products DC55 25A Classic Self Contained Icemaker

 Model

DCQ70-40A

 Production

70kg per 24hrs

 Storage kg

40

 Dimensions mm

 (inc feet) WxDxH

735 x 603 x 1017

 Drain Height mm

 (inc feet)

345

 Amps Required

13

DC Products DC55-25A Icemaker

 Model

DCQ100-60A

 Production

100kg per 24hrs

 Storage kg

60

 Dimensions mm

 (inc feet) WxDxH

735 x 603 x 1117

 Drain Height mm

 (inc feet)

345

 Amps Required

13

DC Products DC55-25A Icemaker

 Model

DCQ140-65A

 Production

140kg per 24hrs

 Storage kg

65

 Dimensions mm

 (inc feet) WxDxH

840 x 740 x 1185

 Drain Height mm

 (inc feet)

345

 Amps Required

13

Also available with internal drain pump

Ideally suited to

Bars
Nightclubs
Hotels
Restaurants

Downloads

Spec. sheet

DC Products DC45 25A Self Contained Icemaker

Image Downloads

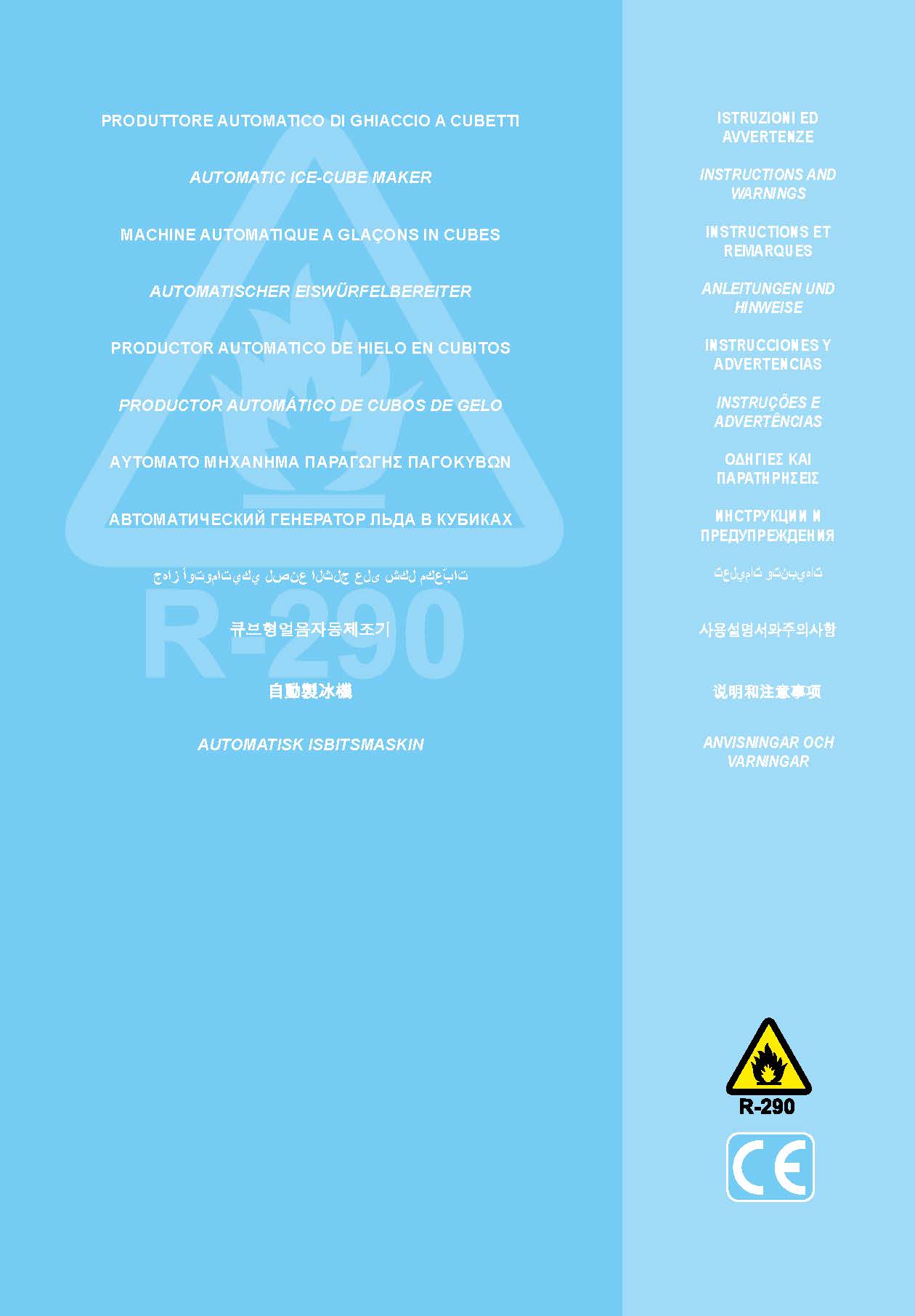

User Guide
