DC Products SXD50 Dishwasher

DC Products dishwashers

are trusted for their superior quality, energy efficiency, powerful cleaning capabilities, and user friendly features

Each range produces excellent results time after time

Performance and environmental

awareness are taken to the

next level with the

Standard Extra Series

Supplied with rinse and detergent

dosing units to help protect machine and improve results

Features

STYLISH. BALANCED. PRECISE.

Controls

  • LCD display
    reduces user error and staff training
  • Programable audio status indicator
  • Programable thermolock
    for guaranteed rinse temperatures
  • Soft touch controls improve ease of use

Hygiene

  • Reduced water consumption providing the balance between water usage and hygiene
  • Integral water softener (optional) softens water without the need for an external unit
  • Auto drain down (optional) ensures rapid drain down with no need for user intervention
  • Chemical auto-dosing eliminates user intervention and prevents over or under dosing

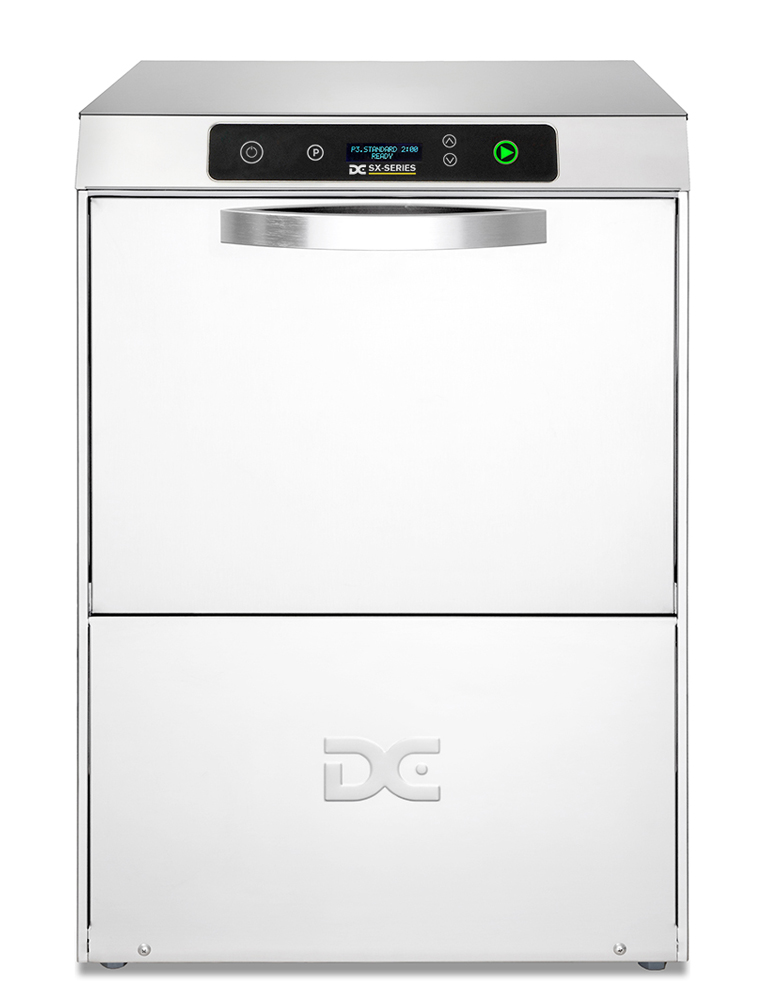

DC Products sXD50 dishwasher

Supplied with three dish baskets

Technology

  • Four fixed cycles and one adjustable My Wash cycle providing several options
  • Fast two minute wash cycle
    ensures maximum productivity
  • Reduced water consumption
    produces the optimum balance between water usage and hygiene
  • Chemical auto dosing
    eliminates user intervention and prevents over or under dosing
  • Colour status button displaying latest condition
  • Dual element configuration

Construction

  • Hydrodynamic basket slides ensure optimum wash and rinse coverage
  • Rinse thermolock delivers perfect rinse temperatures time after time
  • Improved rinse arms increase initial response by 30% and rotation speed by 20%

Standard Extra Dishwashers

SPECIFICATIONS

DC Products SXD45 glasswasher

 Model

SXD45

 Cycle time

90 / 120 / 180 / 300 / User Defined sec

 Baskets (x2)

450 x 450 mm

 Amps required

30 Amps*

DC Products SXD50 glasswasher

 Model

SXD50

 Cycle time

90 / 120 / 180 / 300 / User Defined sec

 Baskets (x2)

500 x 500 mm

 Amps required

30 Amps*

Dimensions

 Height

795 mm

 Height

825 mm

 Width

535 mm

 Width

580 mm

 Depth

575 mm

 Depth

635 mm

 Depth – door open

930 mm

 Depth – door open

1015 mm

 Usable wash height

290 mm

 Usable wash height

315 mm

 Drain height

180 mm

 Drain height

200 mm

 Drain ∅

25 mm

 Drain ∅

25 mm

Volume

 Wash tank

22 L

 Wash tank

26 L

 Boiler

2.8 L

 Boiler

2.8 L

 Water usage

2.6 L p/c

 Water usage

2.6 L p/c

Power

 Wash element

2 kW

 Wash element

2 kW

 Boiler element

6 kW

 Boiler element

6 kW

 Total load

6.4 kW

 Total load

6.4 kW

Chemicals

 Detergent dosing

Yes

 Detergent dosing

Yes

 Rinse aid dosing

Yes

 Rinse aid dosing

Yes

Water

 Water connection

3⁄4 BSP

 Water connection

3⁄4 BSP

 Required water pressure

2-4 bar

 Required water pressure

2-4 bar

 Required water flow rate

10 L p/min

 Required water flow rate

10 L p/min

Options

 Drain pump

Optional

 Drain pump

Optional

 Internal softener**

Optional

 Internal softener**

Optional

 Break tank (WRAS)

Optional

 Break tank (WRAS)

Optional

* Can be configured to operate on either 13A or 3Ph+N upon request.


** Internal water softener is not suitable for hot water above 30˚C. Softening capacity between regenerations is 250 litres @ 300ppm. Where water hardness exceeds 300ppm and the daily wash cycles exceed 80 per day an alternative softener may be required – please contact your supplier for further information.

Series Features Comparison

Economy
Dishwashers

Economy
Dishwashers

Standard
Dishwashers

Standard Extra Dishwashers

Premium
Dishwashers

Optima
Dishwashers

Photo of EGP40 glasswasher
Photo of EGP40 glasswasher
Photo of SG50 glasswasher
DC Products SXD45 glasswasher
DC Products PG50 glasswasher
DC Products OG50A DC Optima Glasswasher

Fast wash cycle

Heavy duty wash pump

Rinse thermolock

Improved rinse arms

Intuitive, simple controls

EasyClean filters

Chemical auto dosing

Auto drain down

Integral water softener

Hydrodynamic basket slides

Double skinned cabinet

Insulated boiler

Heavy duty heater element

Heavy duty wash pump

Increased usable height

Low volume wash tank

Reduced electrical costs

Counter balanced door

Digital heat sensors

Uprated heating elements

30 amp configuration

Standby mode

Superior peristaltic dosing units

= optional

Ideally suited to
